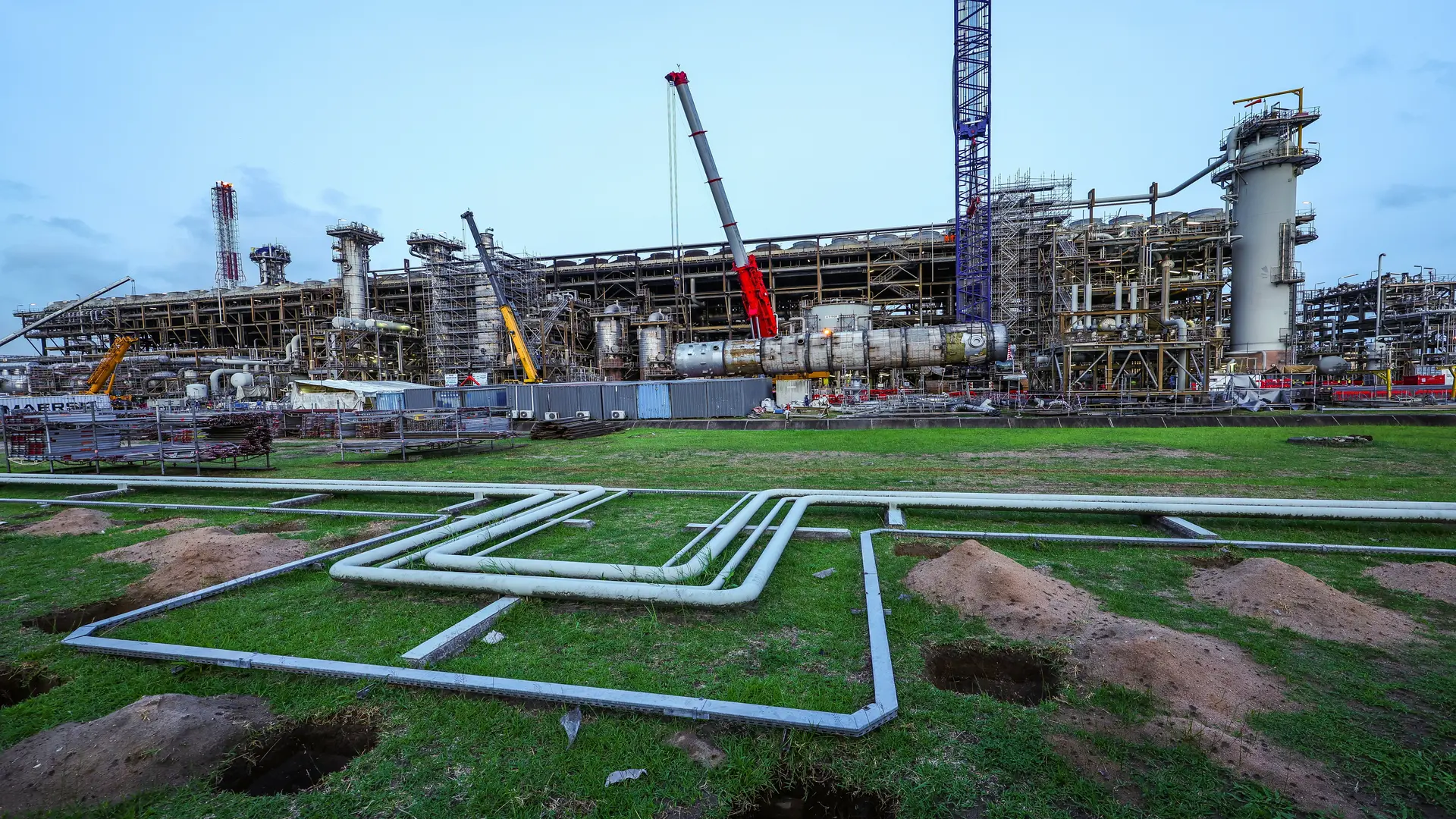

Oil facility revamp: Detail engineering to increase capacity

An oil facility may have reserves, a market, and operating equipment, but continue to produce below its potential due to accumulated constraints. Undersized pipelines, saturated separators, limited relief systems, or obsolete instruments can become bottlenecks. Faced with this scenario, a revamp allows for capacity recovery without building an entirely new plant. Its success depends on well-founded basic engineering and a detail engineering design capable of transforming production targets into safe, constructible modifications that are compatible with operations.

Revamp in the face of capacity constraints

What an intervention must resolve

A revamp is a planned intervention on an operating facility to modify, replace, or incorporate equipment and systems. Its goal may be to increase production, process a different feed, raise reliability, reduce emissions, improve energy efficiency, or meet updated technical requirements.

Unlike a greenfield project, plant modernization must work with real constraints: congested spaces, incomplete documentation, aging equipment, limited shutdown windows, and interfaces between technologies of different generations. Therefore, the project does not begin by drawing new lines, but by checking how the facility currently operates.

The first practical step consists of establishing an operating baseline. Flow rates, pressures, temperatures, compositions, energy consumption, failure frequency, inspection history, and available capacity of each system must be reviewed. This evaluation makes it possible to distinguish between the nominal capacity indicated in original documents and the capacity that the asset can safely sustain.

Locating the bottleneck

It is also necessary to locate the dominant bottleneck. Increasing pumping capacity will not raise production if the downstream separator already operates near its limit. Similarly, expanding a line can shift the constraint to a control valve, an exchanger, a vent system, or a treatment unit.

Debottlenecking studies must analyze the plant as an interdependent system. Mass and energy balances, process simulation, hydraulic curves, and verification of operating scenarios help establish which modifications produce a measurable benefit. These analyses form part of the oil and gas engineering services required before authorizing investments.

A measurable production target

A useful definition of the target must be quantifiable: increasing processing from 80,000 to 95,000 barrels per day, reducing a specific pressure drop, or recovering compression capacity. The detail engineering design will be more robust when production, operations, maintenance, inspection, and safety share these criteria from the start.

Basic engineering to define scope and options

Deliverables to decide the investment

Basic engineering converts a business need into a defined technical solution. In this phase, the required capacity is confirmed, alternatives are compared, and systems that must be modified are identified. Its result must allow deciding whether the revamp is technically, economically, and operationally viable.

Among its common deliverables are design bases, flow diagrams, mass and energy balances, preliminary piping and instrumentation diagrams, equipment lists, data sheets, control philosophies, and cost estimates. The execution strategy and level of intervention during the shutdown must also be established.

Comparison of alternatives

Basic engineering must compare alternatives using homogeneous criteria. To expand a pumping system, options could include changing impellers, installing parallel pumps, replacing equipment, or reducing head losses. Each alternative modifies cost, energy consumption, schedule, maintainability, and execution risk.

A common mistake is selecting the option with the lowest initial investment without considering interferences, shutdown hours, or loss of production. In plant modernization, an apparently economical alternative can turn out to be more costly if it requires extensive demolition or a larger shutdown than permitted.

The evaluation must incorporate HAZID or HAZOP studies, constructability analysis, maintainability review, and an estimation of the production impact during execution. When insufficient data exists, engineering for existing facilities must include field surveys, laser scanning, inspections, and verification of as-built documents.

Multidisciplinary integration

A multidisciplinary organization can participate through conceptual engineering, basic engineering, FEED, cost estimation, and planning. The value resides not only in producing documents, but in integrating processes, piping, equipment, civil, electrical, instrumentation, and safety before freezing the scope.

This integration prevents the detail engineering design from starting with contradictory information. A good practice consists of closing the phase with an action item list, acceptance criteria, appropriate class estimation, and interface matrix. Thus, engineering design services start from an approved solution and not from scattered assumptions.

Detail engineering design for the revamp

From concept to construction packages

Detail engineering design transforms the selected alternative into information suitable for procurement, fabrication, construction, testing, and commissioning. In this stage, dimensions, materials, supports, connections, routes, specifications, and intervention sequences are defined.

Deliverables can include P&IDs issued for construction, equipment and piping drawings, isometrics, 3D models, line lists, material specifications, hydraulic calculations, flexibility analysis, civil drawings, and electrical diagrams. Requisitions, material take-offs, and construction packages must also be prepared.

Tie-ins, surveys, and interferences

In a revamp, detail engineering design must resolve how to connect the new with the existing. This requires identifying tie-ins, system isolation, drains, vents, temporary services, and testing conditions. Each connection point must have verified coordinates, diameter, rating, material, orientation, and planned execution window.

The quality of surveys is decisive. Historical drawings may not reflect modifications made over decades of operation. Engineering for existing facilities must field-verify critical elements and use point clouds when congestion or required precision justifies it.

The 3D model helps detect interferences, but it does not replace constructability criteria. Operation, maintenance, and construction teams must review access, welding space, valve removal, equipment lifting, and future disassembly. Engineering design services must incorporate these observations before issuing final documents.

Plant shutdown preparation

Another decisive aspect is shutdown planning. Detail engineering design must separate activities that can be executed with the plant operating from those requiring isolation, depressurization, or total shutdown. Prefabricating spools, supports, and structures reduces critical work during the intervention window.

Scheduling must link deliverables, procurement, and construction. A long-lead equipment item can control the startup date, while a poorly defined tie-in can extend the shutdown. Therefore, oil and gas engineering services must coordinate the technical sequence with the schedule and cost estimate.

Multidisciplinary capability is relevant when the operator needs to maintain traceability between production need, design decisions, and execution packages, without fragmenting interfaces between specialties.

Integration into existing facilities

Receiving asset verification

Physical integration begins with reliable information. Before releasing procurement, engineering for existing facilities must verify dimensions, materials, elevations, structural capacity, electrical availability, and signals in control systems. A small deviation can render a prefabricated spool useless or prevent equipment assembly.

The mechanical conditions of the receiving asset must also be evaluated. It is not enough for a pipeline to have the correct diameter: its remaining thickness, damage mechanism, repair history, and fitness for new conditions must be known. API 570 and API RP 574 provide references for inspection, evaluation, repair, and alteration of in-service piping systems.

New conditions and management of change

Plant modernization can change pressures, temperatures, compositions, or operating cycles. These changes must be compared with original design bases and the current state of equipment. When new conditions exceed allowable limits, it will be necessary to replace components, re-rate the system, or perform a fitness-for-service evaluation.

Modifications must also undergo management of change. OSHA’s Process Safety Management regulation requires managing changes that affect covered substances, technology, equipment, procedures, or facilities. The process must document the technical basis, safety impact, procedural changes, and corresponding authorization.

Preparation for a safe startup

Before startup, a pre-commissioning safety review is required. It must be verified that construction corresponds to design, procedures are available, risk recommendations were addressed, and personnel received training. Detail engineering design must facilitate this verification through traceable records.

A robust engineering strategy for existing facilities includes multidisciplinary walkdowns, checklists, redline control, and as-built document updates. Without this discipline, the plant can start up with obsolete information, transferring uncertainty to operations, maintenance, and inspection.

Standards applicable to the revamp

A revamp can intervene in assets governed by different codes. ASME B31.3 applies to the design, materials, fabrication, examination, and testing of process piping; API 570 guides inspection, repair, and alteration of in-service piping. For vessels, ASME VIII and API 510 are considered, depending on whether they are new parts or existing equipment.

Relief systems require API 520 and API 521; tanks, API 650 and API 653; and rotating equipment such as pumps and compressors may refer to API 610 and API 617. NFPA 70 or applicable IEC regulations cover electricity and classified areas, while IEC 61511 guides the lifecycle of safety instrumented systems.

Detail engineering design must establish a matrix by discipline, contractual edition, and jurisdiction. Selection depends on the asset, service, and scope of change; not all standards apply to all projects. Oil and gas engineering services must coordinate their interfaces and document the criteria used, especially in tie-ins and existing equipment.

Flexibility, loads, and supports

When connecting a new line to an existing one, the pressure-temperature rating of each component must be verified. ASME B31.3 also requires considering sustained loads, thermal expansion, support movements, vibration, and displacements imposed by equipment.

Flexibility analysis becomes especially important because available routes are usually restricted. A line that complies by pressure can transmit unacceptable loads to a nozzle. Engineering design services must evaluate stresses, displacements, reactions, and thermal cycles, in addition to defining adequate supports.

Welding, examination, and testing

Field welds, tie-ins, and tests must be planned from engineering. ASME B31.3, AWS, among others, establish requirements for fabrication, examination, and testing, but the project must define its concrete application through specifications, inspection classes, acceptance criteria, and test packages.

When a hydrostatic test is not feasible due to contamination, weight, or inability to isolate equipment, any alternative must be evaluated according to code and owner requirements. Engineering for existing facilities must document justification, system limits, and safety measures.

Joint review of standards, regulatory requirements, and operator standards covers both new design and receiving system condition. This vision avoids treating the tie-in as an isolated connection and strengthens integrity control during plant modernization.

Tecnoconsult and engineering for oil revamps

Executing a revamp requires coordinating disciplines that normally advance in parallel and converge at each field modification. In this context, Tecnoconsult provides conceptual engineering, basic engineering, and detail engineering design, in addition to cost estimation and planning for oil, gas, refining, and petrochemical facilities.

Its participation is technically relevant when the operator needs to convert a capacity constraint into executable packages without losing control of interfaces. Oil and gas engineering services can integrate process, piping, equipment, civil, electrical, and instrumentation, while verifying tie-ins, constructability, shutdown sequences, and existing asset conditions.

For more information, I invite you to watch the interview conducted by Inspenet with Pablo Videtta, Vice President of Business Development at Tecnoconsult, who has more than 35 years of experience in management, particularly in project management, scope definition, and control. The interview highlights the importance of artificial intelligence in engineering and design processes, as well as the need to adapt to these new technologies and take advantage of the competitive benefits they offer.

This integration does not replace owner decisions or field validation. Its utility consists of maintaining traceability from production need to procurement, construction, and commissioning, reducing inconsistencies between documents. Thus, engineering design services support plant modernization focused on increasing capacity safely, with cost control, and less exposure to rework.

In summary, TecnoConsult is a leading provider of consulting and engineering services, offering comprehensive and technology-based solutions across various industrial sectors.

Conclusion

A revamp increases production when it eliminates real constraints without creating new risks or shifting bottlenecks. Basic engineering defines the alternative and demonstrates its viability; detail engineering design converts it into a constructible, verifiable solution ready to start up. Field review, tie-in planning, management of change, and application of ASME B31.3 are essential in engineering for existing facilities. With multidisciplinary integration and data-based decisions, investment can translate into sustainable capacity, reliability, and longer asset life.
