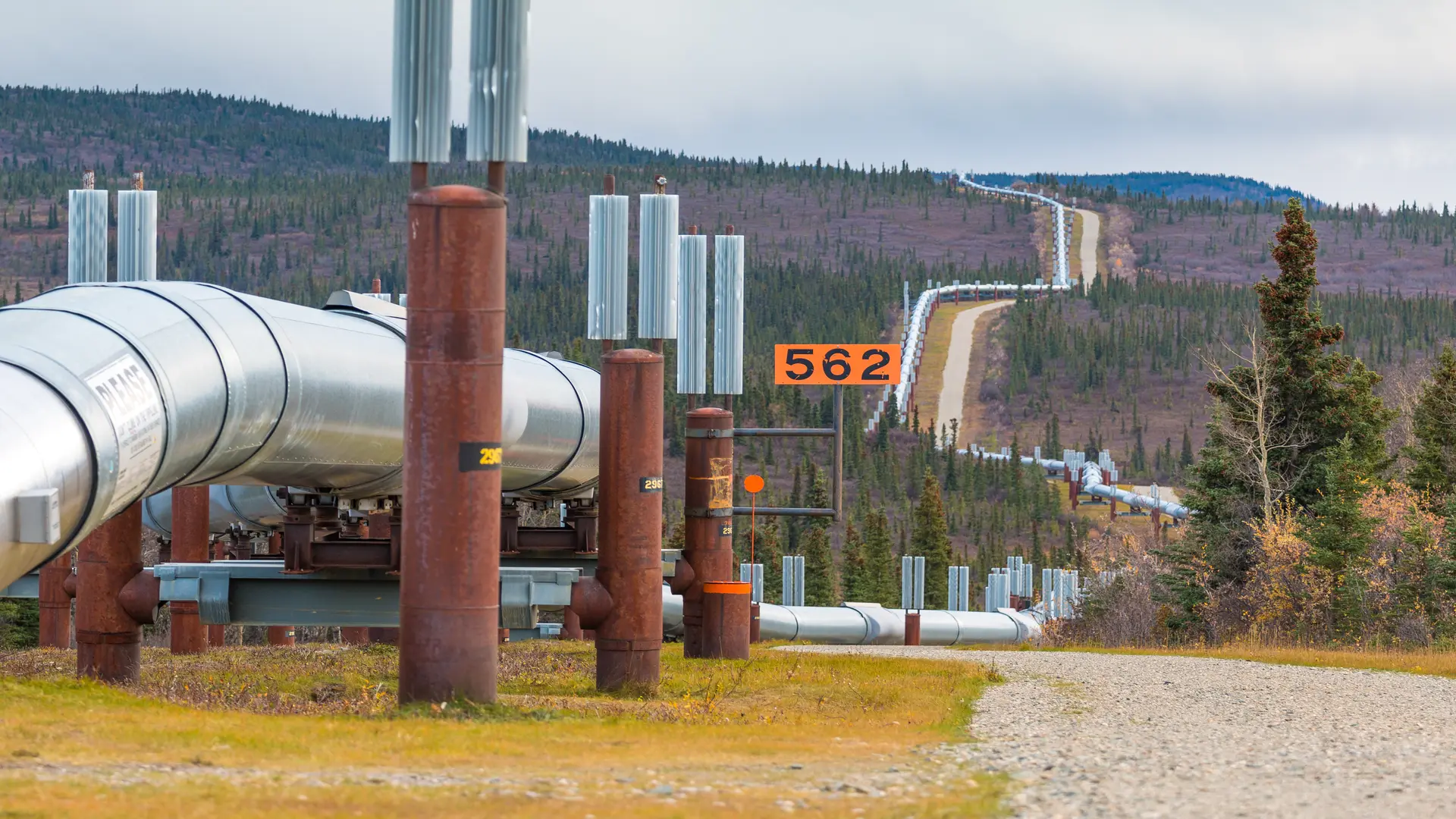

Upstream, Midstream and Downstream: Stages and operations in oil & gas

In the oil and gas industry, the true point of control is not in drilling or refining, it lies in Midstream. The most costly incidents rarely originate “within an isolated asset”; they emerge at the intersections, when gathering, pipeline transportation, conditioning, storage, and transfer are not synchronized, bottlenecks appear, quality disputes arise, capacity constraints develop, and invisible economic losses occur.

Understanding how Upstream and Downstream connect through the logic of Midstream is not theory, it is the foundation for sustaining operational continuity, integrity, compliance, and commercial resilience in volatile markets.

Oil & Gas value chain

The Upstream, Midstream, Downstream chain is often taught as a straight line. In real operations, it behaves as a risk transfer system: Upstream inherits geological and production uncertainty; Downstream demands feedstock within strict specifications; and the intermediate stage acts as the “translator” that converts variability into stability.

This stage is not just infrastructure, it is a technical and contractual architecture that determines whether the system flows or becomes congested. When design and operation are aligned, product moves with minimal friction. When they are not, “system losses” emerge: nameplate capacity that does not become effective capacity, poorly positioned inventories, out-of-tolerance quality, and stalled transfers.

Midstream coordinates responsibilities; every step, from gathering to terminals, redefines who assumes integrity, quality, and custody risks.

Upstream: The origin of variability

Upstream encompasses exploration, drilling, completion, and production. Its objective is to maximize recovery and safety, but the flow it delivers to the system is intrinsically variable. Pressures change, water cut fluctuates, sand may be present, CO₂/H₂S content varies, and multiphase behavior shifts. This variability is not a “detail”; it defines how the system can be transported and processed.

A typical example: increases in free water or solids alter the internal corrosion regime, raise the probability of deposits, and modify separation operations. In wax- or asphaltene-prone crudes, temperature and thermal history impact transportability. In gas systems, increased liquids (condensates/NGLs) change natural gas processing requirements and downstream compression needs.

In short: Upstream produces under uncertainty; Midstream exists to absorb that uncertainty without breaking continuity.

Midstream: Transport, storage and processing

Midstream connects Upstream and Downstream through gathering, processing, transportation, and storage of crude oil, natural gas, and NGLs. The definition sounds simple; operations are not. In practical terms, three functions determine system profitability:

Normalize: reduce composition and condition variability to meet specification (“pipeline quality” where applicable).

Move: ensure hydraulic mobility and logistical continuity in pipelines under pressure, integrity, and effective capacity limits.

Buffer: use storage tanks and terminals to decouple production and demand, managing inventories, blending, and commercial windows.

If any of these functions fail, Downstream loses stable feedstock and Upstream faces restrictions or curtailments.

In pipelines, real capacity is conditioned by maximum allowable operating pressure, hydraulic friction, internal deposits, and external coating condition. In tanks, bottom management, corrosion, vapor control, and automated measurement determine whether storage is a strategic asset or a risk point.

Storage terminals

Terminals are the invisible buffer of the system. They do not just store—they enable batching, blending, quality control, and synchronize loading and unloading windows. In many value chains, the real bottleneck is not the pipeline, but the terminal.

The reason is operational: terminals concentrate transfer maneuvers, equipment, custody measurement, and emissions control. Every shutdown due to misalignment, vapor restriction, pump unavailability, or failure of a critical loading point translates into loss of effective capacity. When the system is under stress, that loss multiplies.

Viewed from the value chain perspective, this is where it is decided whether hydrocarbons will be deliverable, acceptable, and reliable. Logistics, technical specification, and integrity cease to be isolated operational attributes and become economic variables determining commercial continuity.

Downstream: Transformation and market

Downstream transforms crude and NGLs into fuels, lubricants, and petrochemical feedstocks. Its efficiency depends on a simple truth: quality and continuity. Off-spec feedstock affects yields, energy consumption, operational stability, and compliance. A logistical interruption alters inventories and may force suboptimal runs or production cuts.

That is why the Upstream versus Downstream debate is often misplaced. The real friction is not between producing and refining, but in the segment that connects them: Midstream, where production variability and specification demands converge.

How Midstream “Works”

Operationally, this stage is managed across five fronts:

1. Effective capacity vs. nameplate capacity: Nameplate capacity is rarely real capacity. Changes in density/viscosity, thermal constraints, pressure limits, pumping/compression availability, and maintenance windows make capacity dynamic. This phase is competitive when it manages variability through scheduling and continuous debottlenecking.
2. Flow assurance: Deposits (wax/asphaltenes), gas hydration/hydrates, liquid carryover, and water accumulation are silent enemies. Solutions are rarely singular: they combine thermal control, chemicals, pigging, and disciplined operations. The question is not “if deposits will occur,” but “how they are detected and controlled before capacity is lost.”
3. Integrity as a business limiter: In pipelines, integrity defines maximum operating pressure. Cathodic protection systems and next-generation epoxy coatings (FBE) are decisive in mitigating internal (H₂S/CO₂) and external corrosion. A system may have market demand, but if its steel fails, there is no business.
4. Custody transfer: At this stage, measuring is as critical as moving. Custody transfer is where economic value materializes: volume, density, temperature, composition, and corrections must be traceable. A measurement deviation is not a “technical error”, it can become a high-impact contractual dispute.
5. Marine transfer and export: Many articles fall short here. Export through marine terminals is not merely “loading ships”; it is operating a complex interface between storage, pumping, measurement, safety, vapor control, and metocean conditions. When transfer is offshore, the system becomes a critical structural engineering asset.

Offshore transfer and SPM systems

SPM (Single Point Mooring) systems clearly illustrate why Midstream is not limited to onshore pipelines. An SPM is an offshore mooring and transfer infrastructure that allows vessels to load and unload while freely weathervaning in response to wind, waves, and currents. This reduces direct structural loads on the hull and transfer system, but does not eliminate operational complexity.

From this perspective, an SPM is not just a connection point; it is a critical node where logistics, structural engineering, and operational integrity converge. If the system is unavailable, exports stop and storage quickly becomes a constraint.

Cyclic loads, marine corrosion, and continuous dynamic stresses increase the structural criticality of the mooring system. Additionally, product transfer requires rigorous pressure control, sealing, and operating procedures to avoid containment events. In other words, the SPM concentrates commercial availability, mechanical integrity, and environmental safety into a single point.

Typical operational risks

Integrity and loss of containment: Internal and external corrosion, along with mechanical damage, generate progressive operational restrictions that reduce pressure, flow, and availability. Integrity management must integrate material selection, surface protection in critical areas such as splash zones in SPMs or tank bases, and risk-based inspection programs to preserve operational continuity.

Quality and specification: Out-of-tolerance quality stops the system even when everything is mechanically available. Water, solids, contaminants, or off-spec composition trigger rejections, reprocessing, or corrective blending. This stage controls quality “before” transfer, not after disputes arise.

Logistical reliability: Congestion, insufficient storage, or equipment unavailability create differentials: hydrocarbon value changes based on evacuation capacity, not existence. In such scenarios, the real solution is not “more production”; it is better Midstream.

Effective indirect solutions

Design by interface, not by asset: Many failures originate at interfaces, between gathering and transmission, tank and pump, terminal and vessel. Designing by interface means defining clear quality, capacity, and safety limits for each transfer, with measurable acceptance criteria.

Operate for effective capacity: Maturity occurs when operators stop pursuing “maximum throughput” and start pursuing “maximum continuity.” This requires scheduling, condition-based maintenance, and discipline in pigging, chemical treatment, and temperature management to prevent silent capacity degradation.

Integrity as commercial strategy: In Midstream, integrity is not compliance, it is competitive advantage. Infrastructure that maintains availability and reduces constraints can capture commercial windows others miss.

Offshore transfer as a critical node: Treating an SPM as mere “equipment” is a mistake; it is a system node. It must be managed as critical infrastructure: traceability, inspections, fatigue/corrosion control, and rigorous documentation management.

Conclusions

The Upstream–Midstream–Downstream division simplifies the energy chain, but real performance depends on Midstream. It is where variability becomes stability, production becomes commercial flow, and integrity, quality, and custody become business decisions.

From pipelines and processing plants to terminals and offshore transfer, this stage demands robust engineering and interface-based management: controlling bottlenecks, ensuring specifications, and protecting critical nodes such as mooring and transfer systems. Mastering this stage is not about “having infrastructure”, it is about operating continuity and resilience across the entire oil and gas industry.

References

1. Speight, J. G. (2014). The chemistry and technology of petroleum (5th ed.). CRC Press.
2. Devold, H. (2013). Oil and gas production handbook: An introduction to oil and gas production, transport, refining and petrochemical industry. ABB Oil and Gas.
3. U.S. Energy Information Administration. (2023). Oil and petroleum products explained. https://www.eia.gov/energyexplained/oil-and-petroleum-products/
